DENTAL CARE
MyLunos Duo® – table-top unit for ultrasound and powder jet treatments
The all-rounder for all purposes
MyLunos Duo® combines two of the most important treatment methods for a prophylaxis session: powder jet treatment and ultrasound treatment. The combined unit enables complete prophylaxis and periodontal treatment using just a single device, with highly flexible application tailored to the needs of the individual patient – ranging from ultrasonic removal of supragingival and subgingival calculus to the removal of discolouration and biofilm with the powder jet.
Design tailored to the application
During a prophylaxis session or periodontal treatment, you can use the functions Supra and Perio to switch as required between supragingival and subgingival powder jet application. Here, two different Lunos® Prophy Powders can be easily interchanged. In addition, if required it is also possible to switch during treatment from powder jet (polishing) to ultrasound. Blockage protection: A continuous airflow reliably prevents any deposits from forming in the tubing system and prevents blockage of the device.
Clearly laid out and hygienic display
All functions can be used quickly and intuitively, even during use. Thanks to its flat surface, the entire unit can be cleaned and disinfected quickly and easily. We recommend our FD 322 premium wipes for this from DÜRR DENTAL System Hygiene. The ID 213 Instrument disinfection system also cleans and disinfects all components on the device.
Flexible water system
MyLunos Duo® has a fixed water connection for both application areas – polishing and ultrasound – as well as an attachable water tank with a capacity of 500 ml for ultrasound applications. The appropriate water supply for ultrasound applications can be chosen to suit the requirements. The water is heated to a pleasant temperature for the patient.
360° foot switch
All the functions of the application are activated via the modern foot switch. Thanks to its round shape and compact size it is easy to position perfectly on the floor, where it can be operated from all sides for maximum flexibility.
One device, one solution – for every patient case and for every treatment scenario
Multifunctional application options and high cleaning power down to the root area
The Lunos® nozzle system is compatible with the MyLunosLunos® powder jet handpiece as well as the MyLunos Duo® combination device
Our promise: the best service – for the highest customer satisfaction
Powder jet
Interchangeable SUPRA and PERIO nozzles
Two different nozzles are available for supragingival and subgingival treatments with the MyLunos Duo® powder jet handpiece. Each can be rotated through 360° to enable easy access even in difficult to reach areas in the mouth of the patient. The two nozzles can be swapped quickly and easily during the treatment, enabling highly efficient working. Because the nozzles are uniquely compatible with the mobile MyLunos PWS handpiece, the accessories can be used in a flexible manner.
- Supragingival treatment
- Professional teeth cleaning
- Conditioning before fissure sealing
- Cleaning of brackets, braces, crowns and bridges
- Subgingival treatment
- Periodontis therapy
- Peri-implantitis therapy
Prophy Powder Gentle Clean and Perio Combi
The Lunos® Prophy Powders Gentle Clean and Perio Combi are available for powder jet treatments. The innovative abrasive agent Trehalose (disaccharide) is highly water-soluble. It tastes pleasingly sweet yet is not cariogenic. It leaves no powder residues in the patient‘s mouth and protects the oral mucosa. And on top of all that, it even protects the suction unit. Gentle Clean is available in the flavours Neutral, Spearmint, Orange and Wild Berry, and Perio Combi is available in the flavour Neutral.
Ultrasonic
Scaler handpiece* with LED light
Particularly lightweight and handy Scaler handpiece with LED light for optimum illumination and view of the treatment area in the mouth of the patient. We also have a large number of instruments available for needs-appropriate treatment. Depending on the instrument used, the corresponding power setting can easily be selected via the touchscreen display.
Scaler instruments*
MyLunos Duo® offers a great choice of different Scaler instruments to enable needs-appropriate use of the system in a wide range of treatment scenarios and patient cases. The instruments are made of surgical stainless steel, and the IC1 attachment for implant cleaning is made of 100% PEEK (a high-tech plastic). All instruments and attachments are suitable for full cleaning and disinfection.
Torque wrenches*
Each instrument is supplied in its own torque wrench to enable it to be screwed directly and reliably onto the Scaler handpiece. The torque wrench can be fully cleaned and disinfected.
Ultrasound instruments contained in the MyLunos Duo® sales package

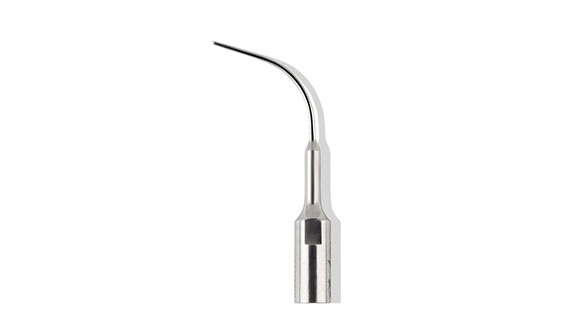

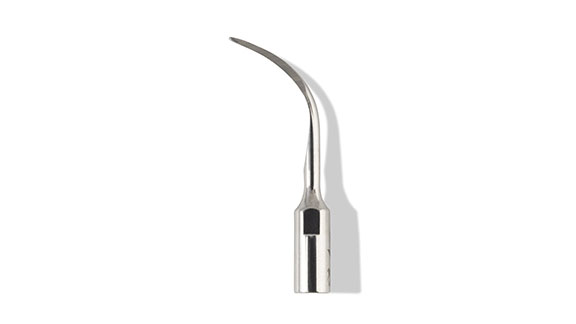

Instrument with a shorter working tip, triangular cross-section and rounded surface for universal applications such as the treatment of interproximal surfaces and posterior areas.
Function: Scaler
power settings: 1-5

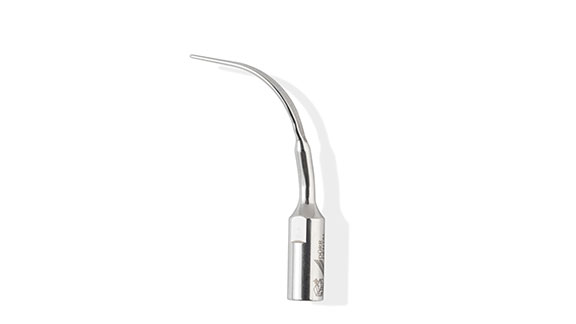

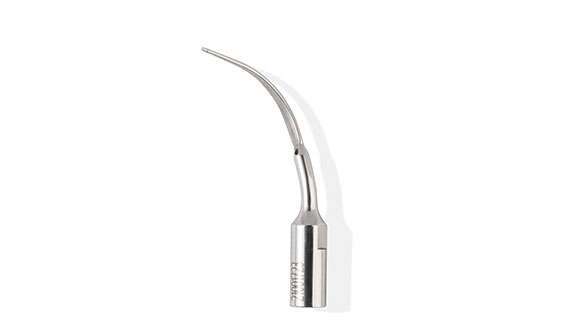

Instrument with an extra-long, slightly curved working tip and rounded surface for removal of calculus and biofilm from the root surface.
Functions: Supra and Perio Scaler
power settings:
Supra: 1- 4
Perio Scaler: 1- 3
Instrument with curved working tip angled to the right (15°) and rounded surface for gentle removal of subgingival concrements. Functions:
Supra and Perio Scaler
power settings:
Supra: 1- 4
Perio Scaler: 1- 3
Instrument with a curved working tip angled to the left (15°), with a rounded surface for gentle removal of subgingival calculus.
Functions:
Supra and Perio Scaler
power settings:
Supra: 1- 4
Perio Scaler: 1- 3
Optional accessories

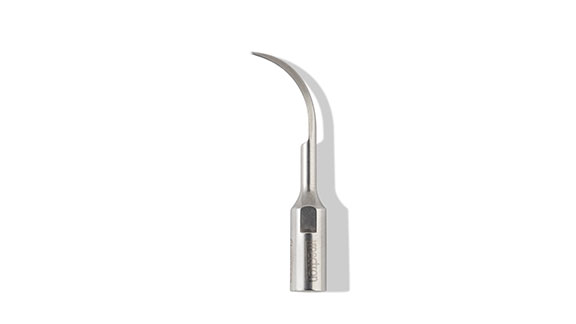

Narrow instrument with a longer working tip, triangular cross-section and rounded surface for removal of supragingival calculus.
Function: Scaler
power settings: 1-3

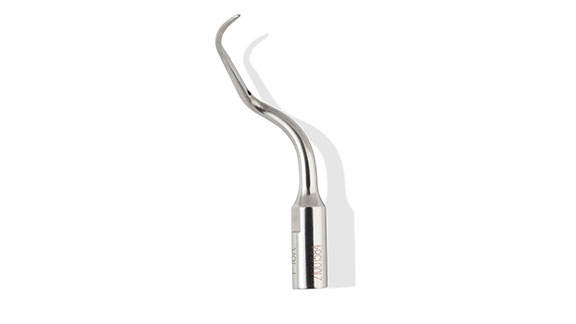

Instrument with a curette-shaped working tip angled to the right, for supragingival and subgingival removal of calculus and biofilm in deep pockets and furcations in the area of the premolars and molars.
Function: Perio
power settings: 1-3

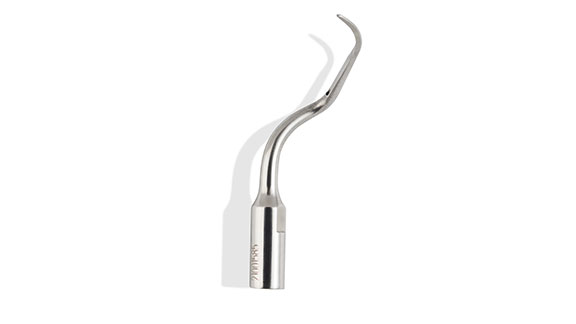

Instrument with a curette-shaped working tip angled to the left, for supragingival and subgingival removal of calculus and biofilm in deep pockets and furcations in the area of the premolars and molars.
Function: Perio Scaler
power settings: 1-3

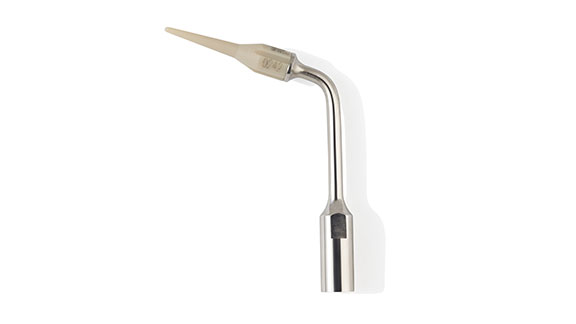

Instrument consisting of the narrow ICS instrument holder, which is angled by 102°, and the conical 10 mm long IC1 attachment made of 100% PEEK (a high-tech plastic) for efficient, gentle cleaning of implant surfaces and restorations.
Function: Perio Scaler
power settings: 1-3
Functions

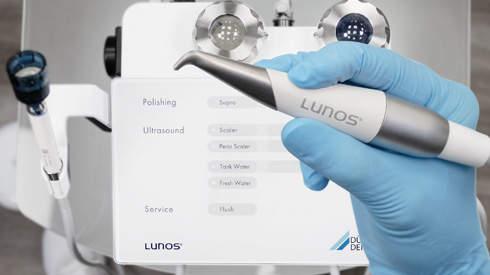

Function for supragingival application in combination with the Supra nozzle and the Supra powder container. For this application, the Lunos® Prophy Powders Gentle Clean are available in the flavours Neutral, Spearmint, Orange and Wild Berry.

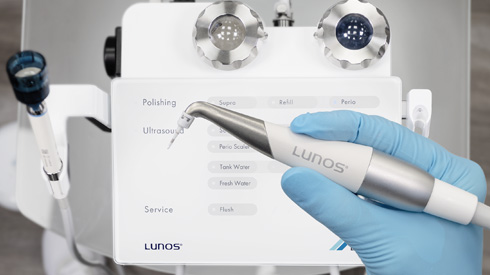

Function for subgingival application in combination with the Perio nozzle and a sterile single-use tip as well as the Perio powder container. For this application, the Lunos® Prophy Powder Perio Combi is available in the flavour Neutral.

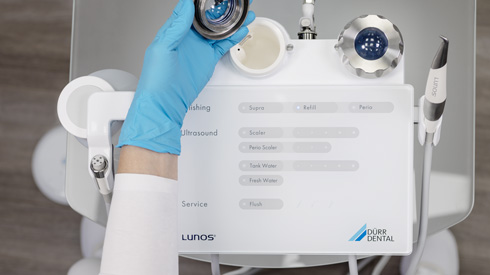

The Refill function relieves the pressure on the powder containers and thus makes it possible to open and effortlessly remove the powder containers without switching the device off first – for flexible filling with the Lunos® Prophy Powders.

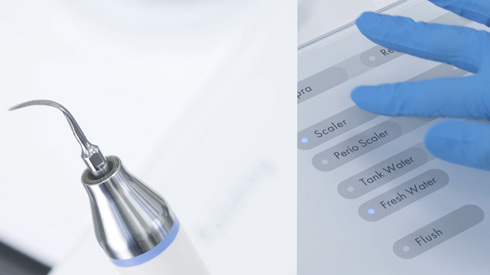

Functions for ultrasound applications with the Scaler handpiece. Depending on the instrument type, the matching function can be selected in different power settings. The Scaler function is primarily designed for supragingival applications, while the Perio Scaler function is intended for subgingival treatments.

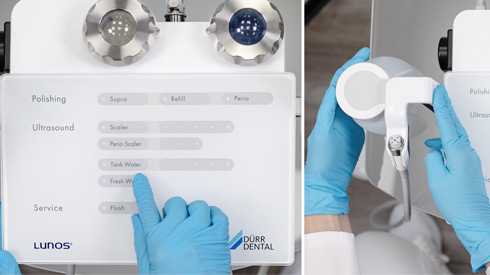

These functions are used to select the appropriate water supply based on current needs during ultrasound and powder jet treatments. For Ultrasound applications the water can be supplied either via a permanent water supply connection or via the attachable water tank, with capacity of 500 ml, for prophylaxis treatments. Water for the Polishing function is only supplied via the permanent water supply connection. The water supply can be regulated on the device for all areas.

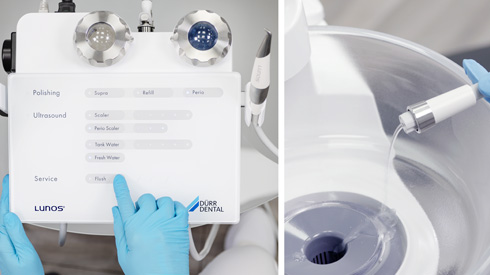

Function for flushing and cleaning the hose systems in the device prior to use, prior to powder changes during treatment and for reprocessing after use. Flushing is activated via the foot switch. An Ultrasound flushing process takes 23 seconds, a Polishing flushing process 40 seconds.
MyLunos Duo® Tool Card
With the aid of the MyLunos Duo® Tool Card, it is very easy to check the wear of individual instruments. If the instrument tip does not reach the magenta line then the instrument must be replaced with a new one. Please feel free to download the PDF here, which can be printed in original size.
